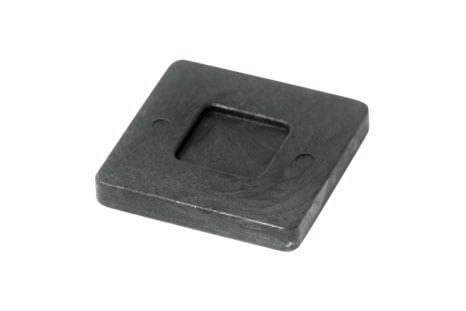

Packing Shims (Levelling Shims)
Levelling shims are used for alignment and levelling of heavy section steel plate and pre-cast concrete section.
Additional Information
Specification
Application
Additional Information
| Thickness | Colour | Code |
| 1x 70 x 70mm | Black | PS771- 49 |
| 2x 70x 70mm | Black | PS772-34 |
| 3 x70 x70mm | Black | PS773-33 |
| 5x 70x 70mm | Black | PS775-30 |
| 10 x 70 x 70mm | Black | PS7710-17 |
| 100 x 95 x 10mm | Black | PS109510 |
Specification
Technical Data (Shims)
| Properties (Poly Propylene) | Test Method | Unit | Value | |
| Melt flow rate (230•c. 2.16 kgs) | ASTM D1238 | g/10min | 11 | |
| Melting point (DSC) | ASTM D3418 | ◦C | 161 | |
| Crystallization point (DSC) | ASTM D3418 | ◦C | 115 | |
| Vicat softening point (1 kg) | ISO 306A | ◦C | 152 | |
| Tensile strength at yield | ISO 527-2/1B/50 | Mpa | 33 | |
| Elongation at yield | ISO 527-2/lB/50 | % | 10 | |
| Flexural modulus (0.05 0.25 %; 2 mm/min) | IS0178 | Mpa | 1350 | |
| lzod impact (Notched at 23•C) | ISO 180-4A | KJ/m2 | 3.5 | |
| Shore hardness D (15 sec) | ISO 868 | 68 | ||
Application
We’ll update you with the PDF
