We offer a very large selection of high quality cast acrylic sheet from Polycril Spain with 10 years warranty for various industries. We supply acrylics of rare quality that are renowned in the design of especially airports, railway station interiors & lifestyle markets amongst others. Our acrylics are easy to shape, fabricate & are specially designed to offer optimum performance across a wide range of applications. Our sheets can offer your innovative designers even more choice, freedom and creativity in creating projects that stand out from the rest and make a grand statement.
We offer a very large selection of high quality cast acrylic sheet from Polycril Spain with 10 years warranty for various industries. We supply acrylics of rare quality that are renowned in the design of especially airports, railway station interiors & lifestyle markets amongst others. Our acrylics are easy to shape, fabricate & are specially designed to offer optimum performance across a wide range of applications. Our sheets can offer your innovative designers even more choice, freedom and creativity in creating projects that stand out from the rest and make a grand statement.
Sizes from 2mm to 80mm, in 3050 x 2050mm

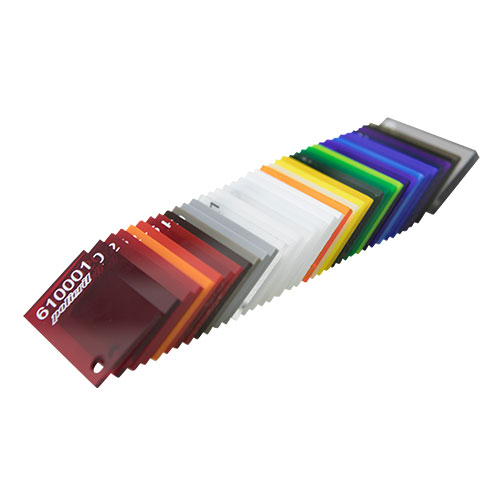

More than 1000 colours available in standard and matt finishes
1. Interior fittings, display, point-of-sale, visual merchandising, store design
2. Elevator interiors, Ceiling tiles, restroom mirrors, displays, children’s nurseries, to make
3. Infinity lights and multiple image devices, in advertising, as garden mirrors, in dance studios, home gyms, horse boxes & stables, special theatrical props, stage shows & effects
4. Monitoring & surveillance operations like stores, hospitals, & casinos.
5. Applications where safety requires the shatter resistance of acrylic plastic sheet.
6. Windshields for boats & yatches.
Technical Properties | |||
PROPERTIES | TEST METHOD | UNITS | VALUE |
GENERAL | |||
Density | ISO 1183.Method A, C or D | g/cm³ | 1.19 |
Water absorption | UNE-EN ISO 62. Method 1(24th, 23 C) | % | 0.5² |
Calorific power (760 mm and 0^0 C) | KJ/Kg° C | 1.255 | |
Ignition temperature T | ASTM- 1929 | °C | 300 |
Self-ignition temperature T | ASTM- 1929 | °C | 430 |
THERMAL | |||
Specific heat c | cal / g °C | 0.35 | |
Heat conductivity | DIN52612 | cal cm / cm² sec C | -4 |
4.5 x 10 | |||
Heat transmission coefficient K 3 mm. | kcal / m² h °C | 5.5 | |
Softening temperature VICAT | UNE-EN ISO 306 Method A50 | °C | 118 |
Temperature for buckling under load | UNE-EN ISO 75-2/A | °C | 98 |
Recommended moulding temperature | °C | 150-170 | |
Linear dilation coefficient | ISO 11359-2 | -1 | -5 |
K | 7 x 10 | ||
Dimensional variations at high temperature | UNE-EN ISO 7823-1 Schedule A | % | max. 2.5 |
MECHANICAL | |||
Tensile strength | UNE-EN ISO 527-2/1B/5 | MPa | min. 70 |
Modulus of elasticity in traction | UNE-EN ISO 527-2/1B/5 | MPa | min. 3000 |
Deformation in traction | UNE-EN ISO 527-2/1B/5 | % | min. 4 |
Flexural strength | UNE-EN ISO 178 | MPa | 110 |
Resistance to Charpy impact | ISO 179 / 1 fU | KJ/m² | min. 13 |
Rockwell hardness | UNE-EN ISO 2093-2 | M scale | 100 |
OPTICAL | |||
PROPERTIES | TEST METHOD | UNITS | VALUE |
Total light transmittance | ISO 13468-1 | % | min. 90 |
before exposure to a xenon lamp (ISO 4892-2) | ISO 13468-2 | % | min. 90 |
after exposure to a xenon lamp (ISO 4892-2) | ISO 13468-2 | % | min. 98 |
Turbidity | ISO 14782 | % | 1 |
Refractive index n | UNE-EN ISO 489 Method A | 1.49 | |
ELECTRIAL | |||
Specific transversal resistance | DIN VDE 0303 P3 | Ωcm | 15 |
Min. 10 | |||
Dielectric strength Ed (1 mm test piece) | DIN VDE 0302 P2 | KV / mm | 30 |
DIN VDE 0302 P4 | |||
Dielectric constant 50 Hz | 3.5 | ||
10 Hz | – | 2.6 | |
DIN VDE 0303 P4 | |||
Dielectric loss factor tan 50 Hz | 5 x 10-2 | ||
10 Hz | – | 5 x 10-2 |
We’ll update you with the PDF
