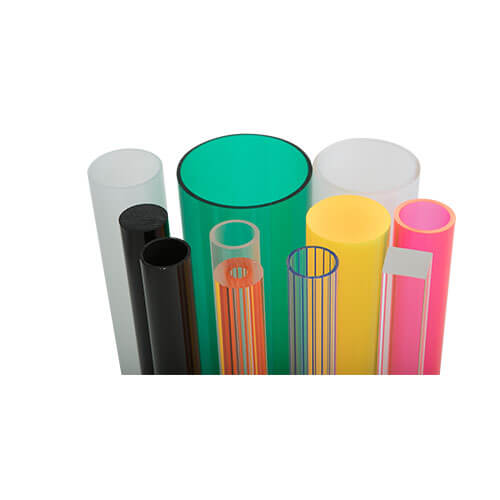

Rods & Tubes
Acrylic rods & tubes have been part of a wide range of applications in industry, product design, home furnishings, and displays. Clear, lightweight acrylics enhance the beauty of any exhibit. Acrylic is easily fabricated without costly tooling charges, can be heat formed for a variety of desired effects, and is easily printed or embossed upon.
FEATURES
1. Acrylic Rods & Tubes are unaffected by sunlight or fluorescent lights, resist aging and maintain stability under a wide range of conditions
2. Acrylic materials weigh half as much as glass & have up to seventeen times greater impact resistance than glass.
3. Certified for food contact, these materials are odourless & tasteless.
4. Acrylic rods & tubes are easily fabricated, shatter resistant & very durable.
TYPES OF ACRYLIC RODS & TUBES
1. Coloured Acrylic Rods
2. Clear Cast Acrylic Rods
3. Corner Moulding
4. Half Round
TUBES – CLEAR
Standard Length: 2 meters
Sizes available: 6mm – 1000mm
Custom sizes and colours available upon request
RODS-CLEAR (STANDARD 2 METERS LENGTH)
Standard Length: 2 meters
Sizes available: 3mm – 150mm
Custom sizes and colours available upon request
1. Staircase Railings
2. Display Solutions, POP, POS
3. Gifts, Novelties, Stationery
4. Furniture fabrications
| PDF (Technical Properties) | |||
| PROPERTIES | TEST METHOD | UNIT | VALUES |
| Specific Gravity | D 792 | – | 1.19 |
| Refractive Index | D 542 | – | 1.49 |
| Light Transmission | D 1003 | % | 93 |
| Tensile Strength | D 638 | kg / cm² | 740 |
| Tensile Elongation | D 638 | % | 5 |
| Flexural Strength | D 790 | kg / cm² | 1200 |
| Flexural Modulus | D 790 | kg / cm² | 3.4 x 10 |
| Rockwell Hardness | D 785 | Scale M | 100 |
| Impact Strength Izod V Notched | D 256 | kg / cm cm² | 1.6 |
| Specific Heat | – | Cal/ºC/g | 0.35 |
| Thermal Conductivity | C 117 | Kcal/n ·hr· ºC | 0.18 |
| Heat Distortion Temperature | D 648 | ºC | 100 |
We’ll update you with the PDF.
