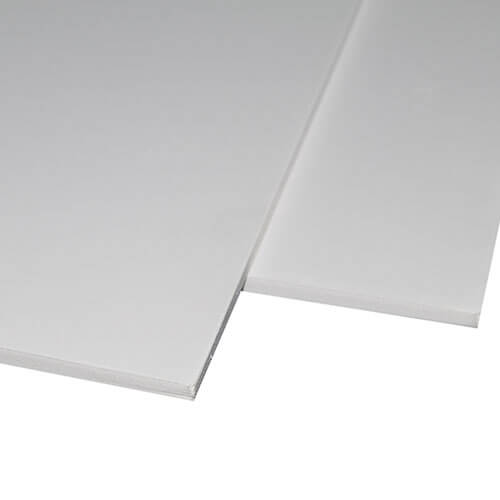

PVC FREE FOAM SHEET
PVC Free Foam Sheet is a chemically foamed,rigid,light weight extruded sheet with fine & homogenous closed cell structure having a smooth matt surface finish on both sides. Sabin offers a superior quality, extremely versatile PVC foam sheet that is supplied as a standard with polyethylene masking on one side or without coating on request. The masking film removes cleanly revealing a smooth surface finish ideally suited for screen and digital printing applications.
Product Range
Size : 1220 x 2440 mm (4 X 8ft)
Available – 1mm to 25mm
Colour: White, Yellow, Black
Size : 2030 x 3050 mm (2 X 3mtr)
Available – 2mm, 6mm
Colour: White
Size : 1500 x 3050 mm (1.5 X 3mtr)
Available – 2mm, 3mm
Colour: White
Custom sizes and colours availabel upon request
| Properties (Polypropylene) | Unit | Value | ||||
| Density | gm/cmᵌ | 0.5 0.8 | ||||
| Shore Hardness D Scale | ‐ | ‐ | ||||
| Tensil Strength | N/mm | 8.0 – 16.0 | ||||
| Elongation at Break | % | 15 | ||||
| Flexural Strength | N/mm | 20 | ||||
| Compressive Strength | N/mm | 2.5 | ||||
| Impact Strength | kl/m | 10.0 – 15.0 | ||||
| Linear Thermal Expansion | mm/ m C | 0.06 – 0.07 | ||||
| Vicat Softening Point (A) | C | 73 78 | ||||
| Heat Deflection Temperature | C | 66 | ||||
| Weather Stability | ‐ | 3 | ||||
| Dielectric Strength | KV/mm | 14 | ||||
| Fire Resistance Rating | ‐ | B1 | ||||
We’ll update you with the PDF.
