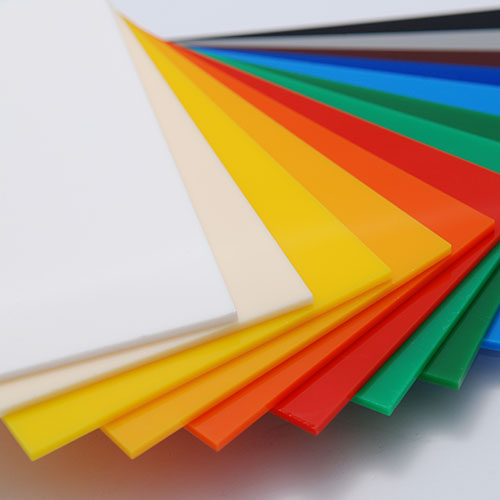

Extruded Sheets (AAA)
Poly methyl methacrylate or PMMA is a transparent thermoplastic. AAA PMMA sheets are able to withstand harsh weather conditions, including UV radiation. These sheets maintain their optical properties for several years and are suitable for industries such as construction and signage. PMMA’s mechanical and optical properties make it an excellent replacement for glass.
FEATURES
1. Excellent Transparency Surface suitable For Buffing Bright,colourless and Rigid Fixed
2. 92% light transmission
3. Easily moulded
4. Elevated hardness
5. Good mechanical strength
6. Resistant to harsh weather
HIGH IMPACT STRENGTH
Acrylic sheets modified for high impact strength are much harder than normal acrylic sheets or glass sheets of the same thickness.These sheets are suitable for signage,displays.
Finish : Glossy I Matte/Textured/Embossed/Crystal/Prismatic Clear/White /Green /Blue /Bronze
Thickness: 1.5 to 20.0 mm
Standard Size : 1220 x 1830, 1220 x 2440, 2000 x 3000 mm
Custom sizes available upon request
| Feature | Method | Value | Unit |
| Physical | |||
| Density | ASTM D-792 | 1.19 | g/cmᵌ |
| Water absorption | ASTM D-57o-98 | 0.14 | % |
| Mechanical | |||
| lzod notched impact strength | ASTM D-256-10 | 5.6 | J/m |
| Elongation to breakage | ASTM D-638-10 | 2.12 | % |
| Tensile modulus | ASTM D-638-10 | 3470 | mpa |
| Tensile strength | ASTM D-638-10 | 55.3 | mpa |
| Flexural strength | ASTM 0790-1D | 129 | mpa |
| Flexural modulus | ASTM 0790-1D | 3620 | mpa |
| Rockwell hardness (HRL) | ASTM D-78 8 | 100.5 | |
| Charpy Impact strength notched | ISO 179 | 0.5 | kj/m² |
| Charpy Impact strength un-notched | ISO 179 | 20 | kj/m² |
| Optical | |||
| Light transmission | ASTM D-1003 | 91 | % |
| Thermal | |||
| VICAT softening temperature | ASTM D 1525-09 | 98.8 | ◦C |
| Heat deflection temperature | ASTM D 648-07 | 87.7 | ◦C |
| Co-efficient of linear thermal expansion | ISO 75-2 | 7 | x10¯⁵/◦C |
